1000pcs/h egg tray making machine
| Model | WJ-1000-3X1 |
| Capacity | 1000psc/h |
| Output per cycle | 3 pieces |
| Powder supply | 380V, 50Hz |
| Water consumption | 160kg/h |
| Power | 38Kw |
You can now ask our project managers for technical details

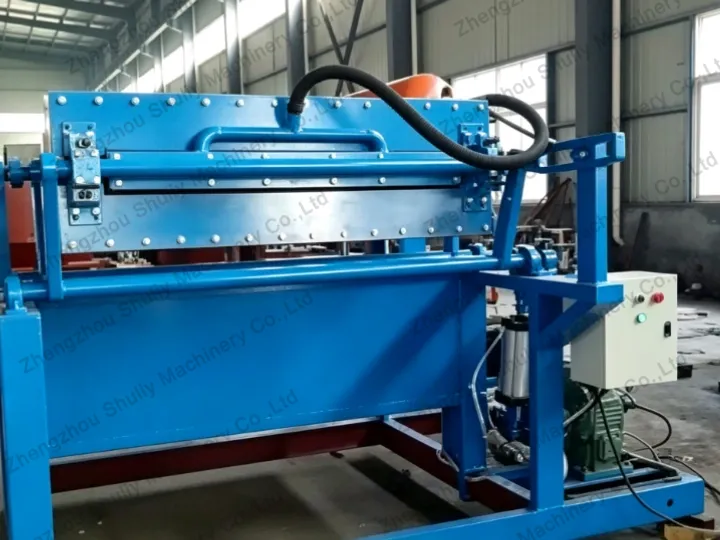

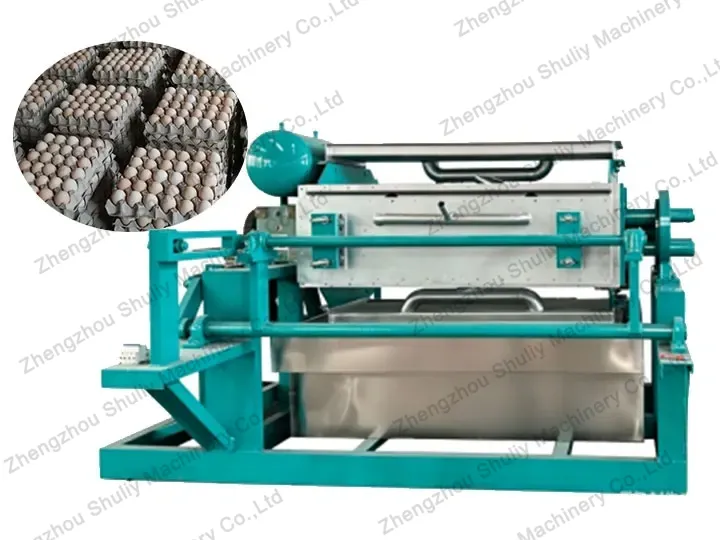

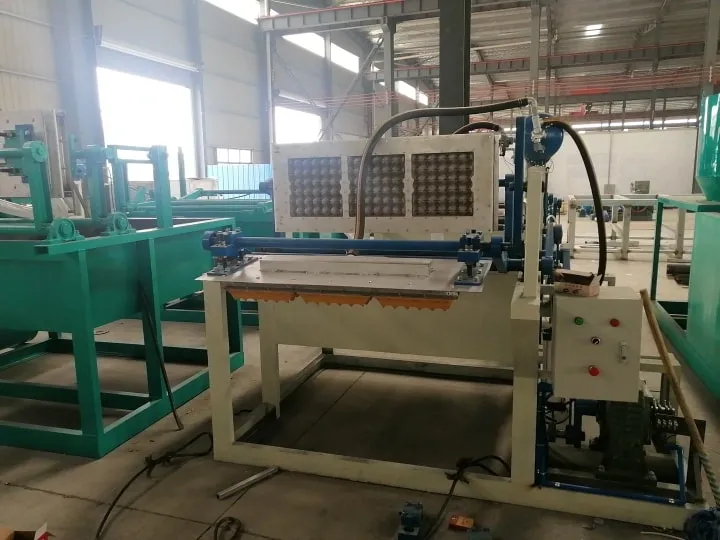

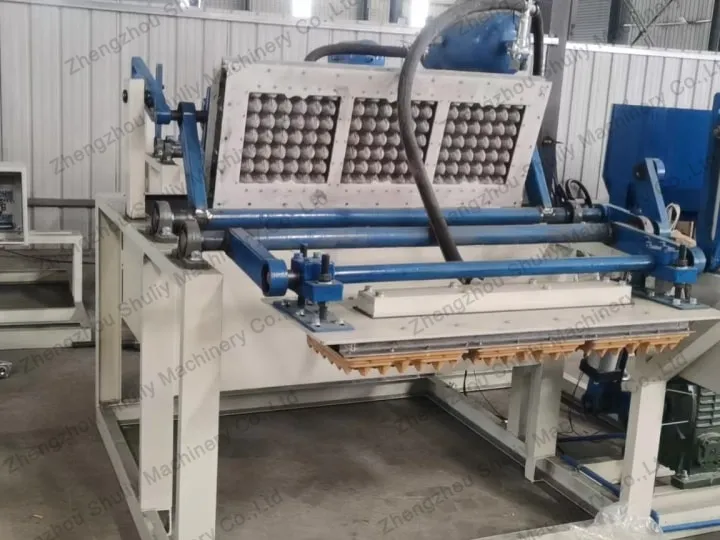

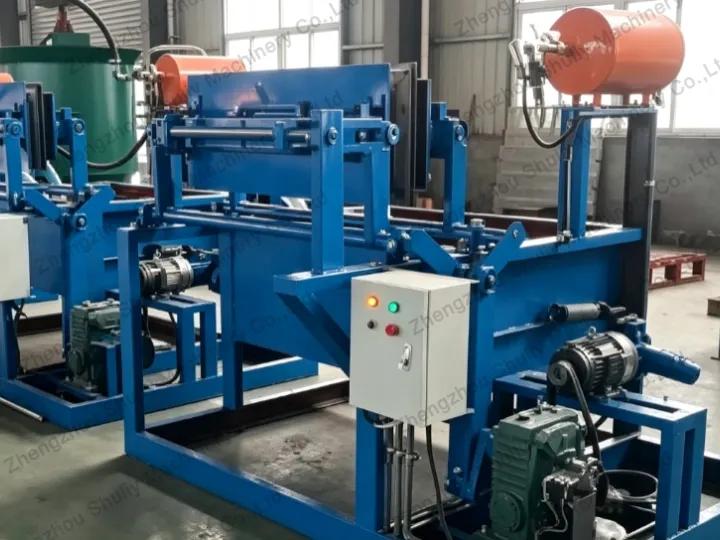

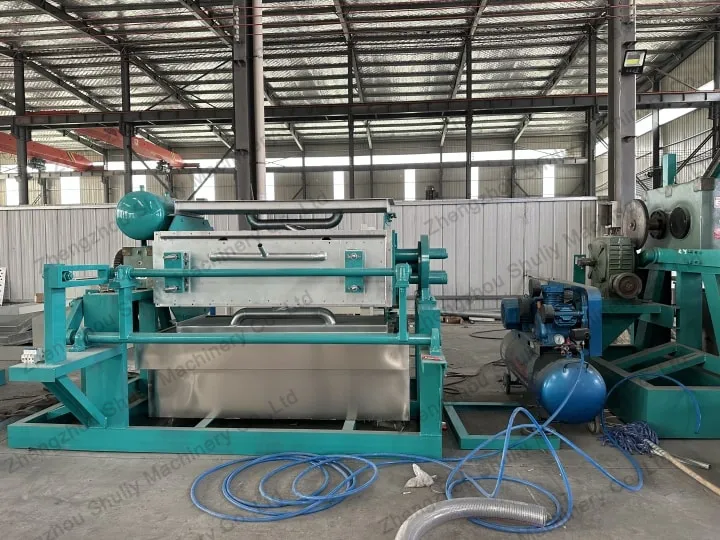

The WJ-1000-3X1 egg tray making machine is a molded pulp packaging machine that processes waste paper and water into egg trays, coffee cup trays, and other molded pulp packaging products.
Our pulp egg tray machine produces 3 molded pulp products per forming cycle, and it has a production capacity of 1,000 pieces per hour. This egg tray machine requires 3–4 workers and is suitable for continuous molded pulp packaging production. It is an ideal choice for small and medium-sized processing plants.
Main advantages of Shuliy egg tray forming machine
- The egg tray making machine is designed for a production range of 1,000pieces/hour, providing a suitable capacity for businesses that need more output than small manual or low-capacity forming equipment.
- The machine is not restricted to one type of product. By changing the forming mold, it can be used for egg trays and egg cartons, coffee cup trays, and other molded pulp industrial packaging
- This pulp egg tray machine requires a relatively low investment, making it suitable for purchase by small businesses and new ventures.
- This paper egg tray making machine adopts a one-button start and stop operation, reducing the complexity of routine machine control. Operators can use this equipment without training.
SL-3*1 egg tray making machine specifications
| Parameter | Specification |
|---|---|
| Model | WJ-1000-3X1 |
| Production capacity | 1,000 pieces/hour |
| Power | 38kW |
| Power supply | 380 V, 50 Hz |
| Weight | 2,500kg |
| Main machine dimensions | 2600 × 2200 × 1900mm |
| Paper consumption | 80kg/hour |
| Water consumption | 160kg/hour |
| Drying method | Air drying or drying box |

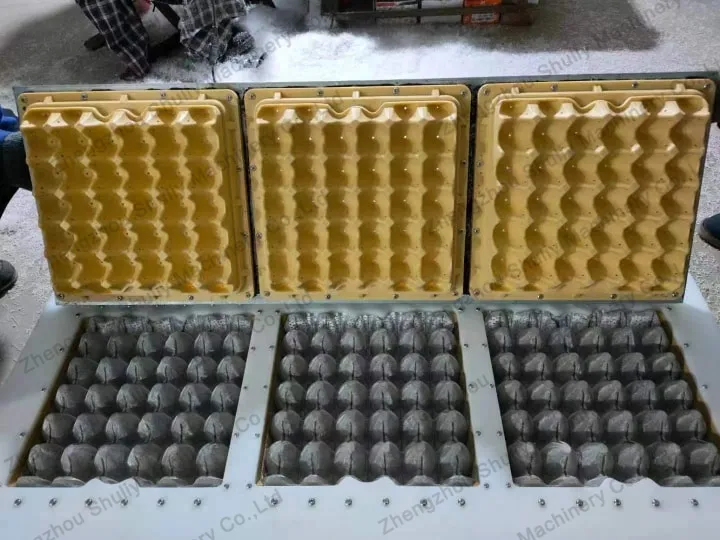

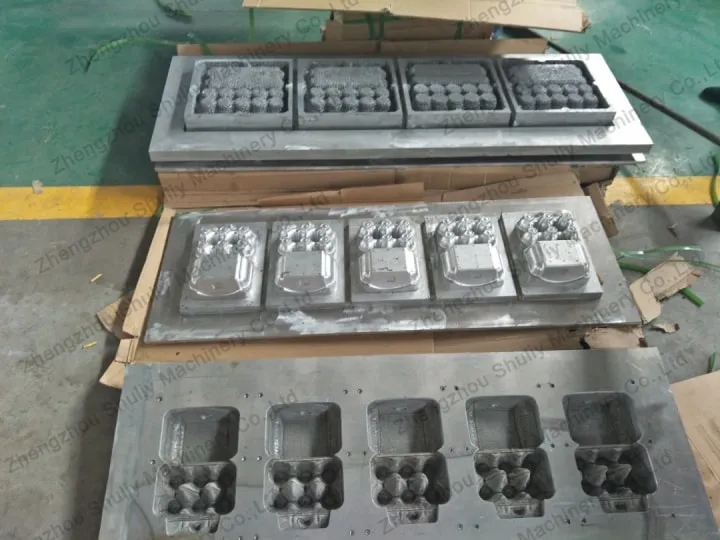

Three mold options for pulp egg tray machine
The egg tray machine can be equipped with three types of forming molds: plastic molds, aluminum molds, and plastic-aluminum composite molds. The choice depends on the required product quality, production frequency, and budget.

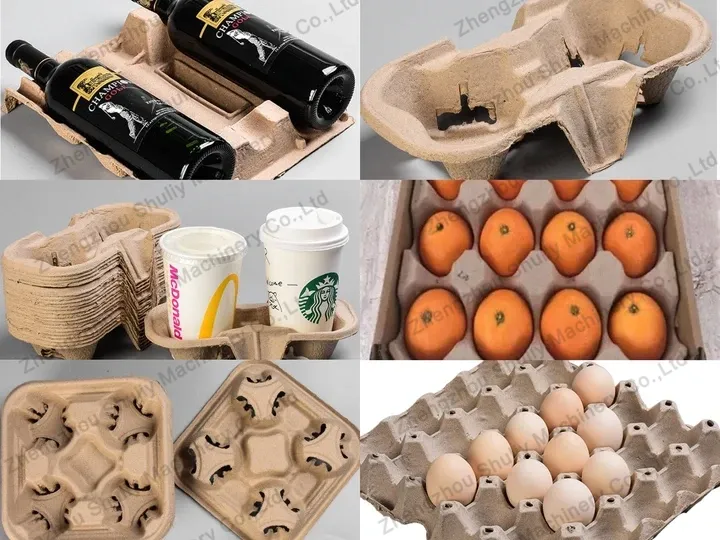

What products can egg tray making machine produce?
The form of the final product is primarily determined by the molding die. Common finished products include:
- Egg trays
- Egg cartons
- Coffee cup carriers
- Fruit trays
- Wine bottle trays
- Industrial molded pulp packaging
As long as the product dimensions and mold specifications are compatible with the equipment, the same molding principle can be applied to produce other molded pulp packaging products.

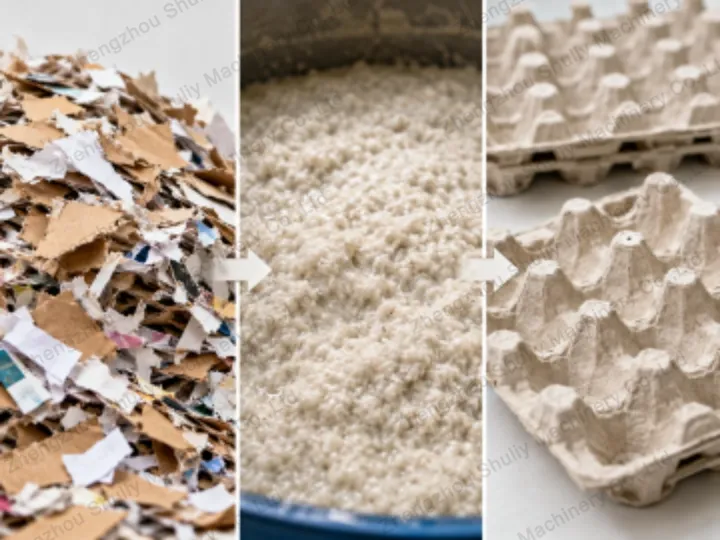

Egg tray production process and supporting equipment
The egg tray production process includes five main stages:
Waste Paper → Pulping → Egg Tray Forming → Drying → Collection and Packing
- Waste paper: Waste paper and cardboard are used as the main raw materials.
- Pulping: A hydrapulper mixes paper with water and converts it into pulp.
- Egg tray forming: The pulp is vacuum-formed in a mold to produce egg trays or other molded pulp products.
- Drying: The wet trays are dried naturally or with a mechanical drying system.
- Collection and packing: Dried trays are collected, stacked, and packed for storage or transportation.
For bulky cardboard boxes or waste paper, a cardboard shredder machine can be used to reduce the material size before pulping.
The main supporting equipment includes a pulper, egg tray making machine, and drying system. The equipment configuration can be adjusted according to production capacity and product requirements.
How much paper does egg tray machine consume?
The SL-3*1 egg tray making machine has a stated paper consumption of approximately 120 kg/hour.
For an 8-hour working day:
120 kg/h × 8 h = 960 kg of paper/day
This gives buyers a basic reference for calculating raw material requirements. However, actual consumption is affected by the finished product’s weight.
What to confirm before buying egg tray machine?
Before purchasing an egg tray making machine, buyers should confirm the following key requirements:
- Target output: Verify that the required production capacity matches the equipment’s output.
- Final product: Confirm the desired style of paper trays, as different products require different molds.
- Drying system: Decide between natural drying and mechanical drying, and determine if additional drying equipment is needed.
- Factory space: Check if the existing facility has sufficient space to accommodate the molding machine, drying area, and auxiliary equipment.
- Production line configuration: Determine the necessary auxiliary equipment based on the target capacity and production method.
FAQ about molded pulp egg tray machine
How much does an egg tray machine cost?
The price depends on the machine model, production capacity, mold configuration, drying system, and degree of automation. Contact us with your required capacity and product type for a suitable quotation.
Do you provide installation guidance?
Yes. We provide installation and operation guidance for the equipment. Depending on the project, remote technical guidance or other installation support can be arranged.
Do you provide shipping services?
Yes. We can assist with machine packaging, export preparation, and transportation arrangements according to the customer’s destination and order requirements.
Are egg tray machines available in different capacities?
Yes. Egg tray production equipment can be configured for different production requirements, with available capacity options ranging from approximately 1,000 to 6,000 pieces per hour.
Looking for an egg tray making machine?
Choosing the right egg tray making machine depends on more than production capacity. The target output, final product, mold design, drying method, and factory space all need to match your project.
If you are planning an egg tray or molded pulp packaging business, contact Shuliy with your required capacity and product details. We can help you select a suitable machine configuration, mold, and supporting equipment for your production needs.
